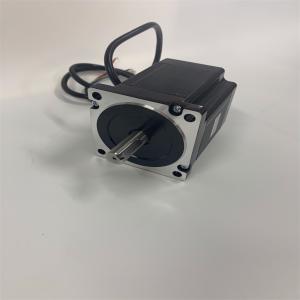

Cnc Route Machine Used 4.5nm Nema 34 Stepper Motor 2 Phase Hybrid Stepper Motor
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..
General specifiation
| Step Angle | 1.8° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Asial Force | 60N |
Electrical Specification:
| Model No | Step Angle() | Rated Voltage(V) | Rated Current (A) | Phase Resistance() | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HS65-3004 | 1.8 | 3.3 | 3 | 1.1 | 6.5 | 28 | 800 | 1000 | 65 | 4 | 1.7 |
| 86HS68-4004 | 1.8 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1000 | 1200 | 68 | 4 | 1.7 |
| 86HS78-4004 | 1.8 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-6008 | 1.8 | 3 | 6 | 0.5 | 4 | 45 | 1200 | 1400 | 78 | 8 | 2.3 |
| 86HS82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 1300 | 1500 | 82 | 4 | 2.5 |
| 86HS82-5608 | 1.8 | 2 | 5.6 | 0.35 | 3 | 50 | 1300 | 1500 | 82 | 8 | 2.5 |
(Unit=mm)
Dimensions: Wiring Diagram:
L1 and L2 canbe customized according to customers' requirements.
Product Tags:
|
|
nema 34 Cnc stepper motor 45kgcm 4.5nm 5.5a 2 Phase 86x78mm Images
|
